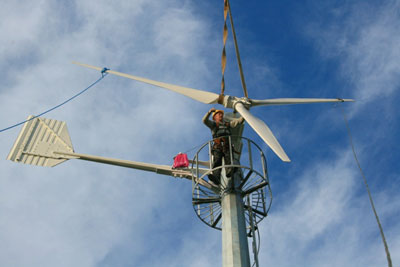

SW New 10kw Wind Turbine
Main Parameter
> Rotor diameter:7.0m
> Blades quantity: 3 pcs
> Direction: always downwind
> Blades material: Glass fiber reinforced plastic
> Rated output: 10kW
> Maximum output: 13kW
> working voltage: DC240/500V,AC220V/380V
> Initial wind speed: 3m/s
> working wind speed: 4-30m/s
> Nominal wind speed: 10m/s(22.5mph)
> Storm-stand: up to 50m/s
> Rated rotate speed:180r/min
> Wind turbine type: Three-phase, Permanent Magnet
                              (on constant magnets)
> Working temperature: from -40 to +60 C
> Stop method: Brake by Hand Drag+ Hydraulic Pressure
> Battery voltage(V)/capacity(AH):12*40-480/400
> Speed regulation method: tail turning and electric magnet
> Accumulators full charge time: about 8 hours
> Mast height/weight: 15m - optional /1000kg
> Weight: 800kgs (without mast)

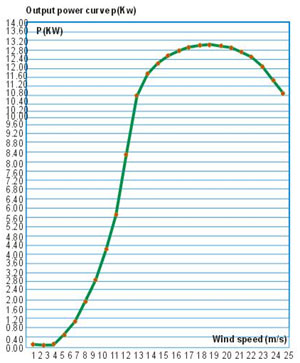

Power sine wave
