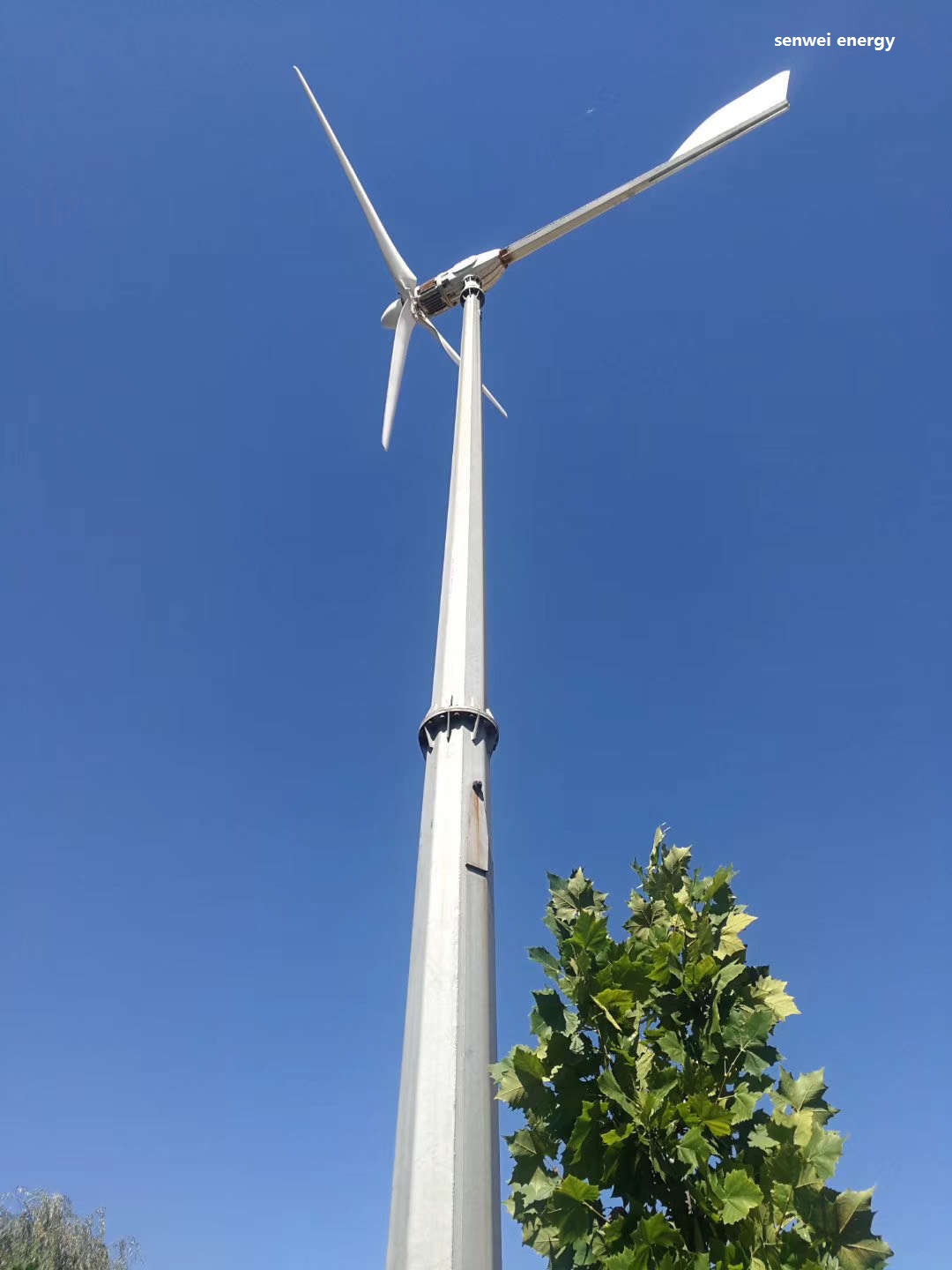

China cheap 10kw wind turbine generator (New Design for Hydraulic tower)
Suitable Models: SWL10KW-AD7.0 fixed pitch yawing wind turbine
SWL20KW-AD10.0 fixed pitch yawing wind turbine
SWL30KW-AD12.0 fixed pitch yawing wind turbine
SWL10KW-AD7.0 fixed pitch yawing wind turbine is a newly designed light-weight 10kW wind turbine. This wind turbine is simple to install, assemble and operate. The mechanical yaw and automatic tail folding system ensure the safety of the wind turbine when it is used. The main body of the wind turbine is made of aluminum alloy. This type wind turbine keeps performance same of the original 10kw wind generator and meantimes makes the main body of the wind turbine to lighter. The same design can also be used in SENWEI 20 kW and 30kW automatic yawing type wind turbine that can use hydraulic tower to lift when it is in realist project operating, so as to solve the problem of that SW10kw-30kw can't be lifted by hydraulic tower because the main body was too heavy.
Technical parameter：
| Wind rotor diameter (m) | 7 | ||||||||||||
| Blade material and quantity | Fiber glass reinforced * 3 | ||||||||||||
| Rated power / max power (w) | 10k/15k | ||||||||||||
| Rated wind speed (m/s) | 11 | ||||||||||||
| Rated rotate speed (rpm) | 210 | ||||||||||||
| Working wind speed (m/s) | 4-30 | ||||||||||||
| Startup wind speed (m/s) | 3 | ||||||||||||
| Survived wind speed (m/s) | 50 | ||||||||||||
| Working voltage (v) | DC500v AC400V | ||||||||||||
| Battery voltage / capcity (v, ah) | 2*250=500 / 200 | ||||||||||||
| Speed regulation method | Yawing and hydraulic brake | ||||||||||||
| Stop method | Manual brake | ||||||||||||
| Generator style | Three phase, permanent magnet | ||||||||||||
| Wind turbine weight (kg) | 650 | ||||||||||||
| AA Tower height / weight (m/kg) | 15/1200 | ||||||||||||
| AAATower height / weight (m/kg) | 15/2800 | ||||||||||||
A. SENWEI SWL10KW~15KW~20KW~30KW small wind turbine is designed to meet demanding requirements from professional users of stand alone or grid connected wind turbines.
B. SENWEI SWL10KW~15KW~20KW~30KW is ideal for replacement of diesel generators at rural telecombase stations, water pumps, gasoline stations or farms.
C. Includes features and solutions for optimal power production, like active yawing and auto-tracking wind direction together with variable speed operation.
D. Systems for remote operation and monitoring ensure high availability, efficient maintenance and long service intervals. Carbon fibre blades and a direct drive permanent magnet generator are other features to meet the need from professional users.
E. Is designed to comply with the IEC 61400-2 Ed. 2 standard for small wind turbines.Strength analysis has been performed for the entire mechanical design. new upwind way to ensure optimum direction towards the wind, and no need to bear the maintenance cost of wind measurer and wind direction equipment.

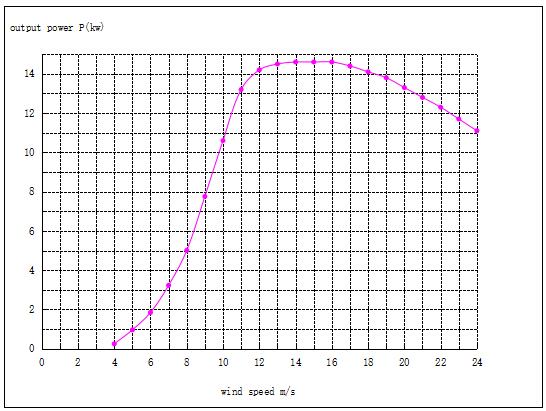

10kw wind turbine(SWL) Power curve
| wind speed m/s | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| output power P(kw) | 0.25 | 0.96 | 1.85 | 3.23 | 5.01 | 7.76 | 10.6 | 13.2 | 14.2 | 14.5 | 14.6 | 14.6 | 14.6 | 14.4 | 14.1 | 13.8 | 13.3 | 12.8 | 12.3 | 11.7 | 11.1 |

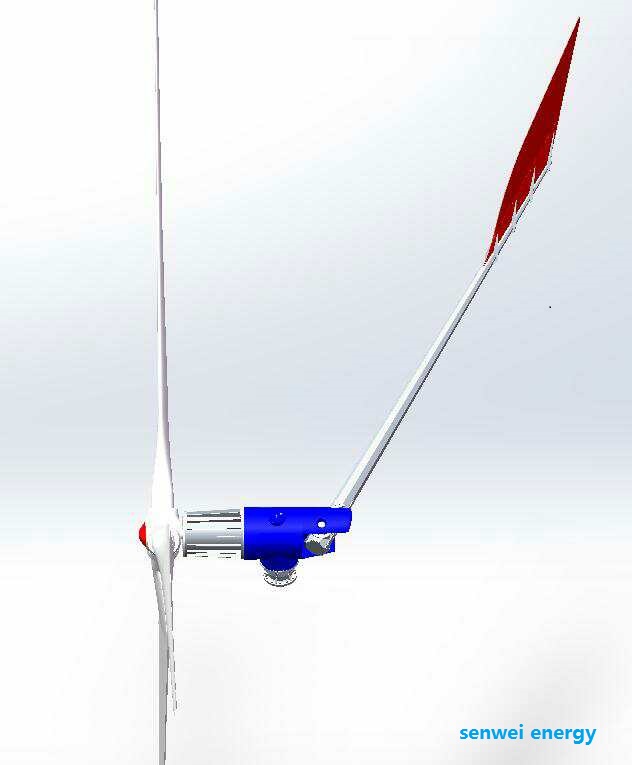

New Design Sketch Drawing:

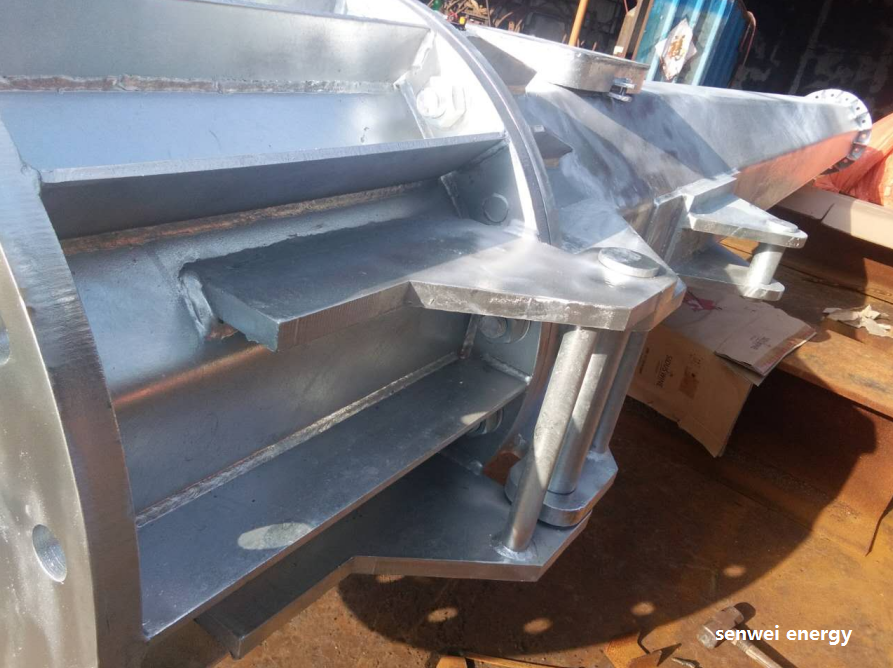

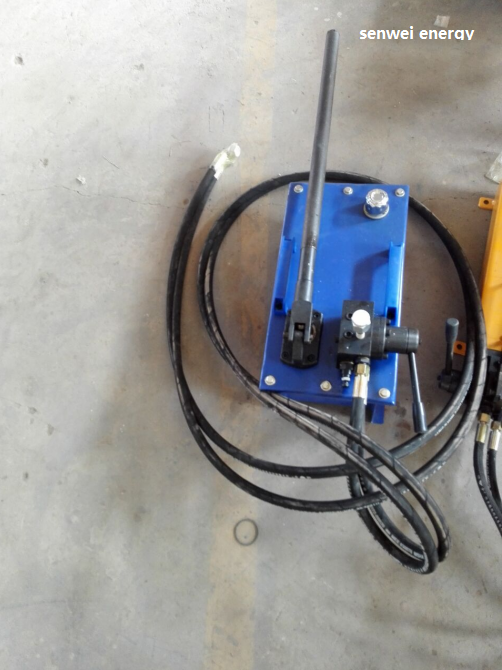

Suitable Hydraulic tower: Hydraulic tower 12m,15m
