SENWEI lightWeight Version Full Power Small Wind Turbine 200w-500w/750w-2KW Birth
Based on the urgent demand for low-cost small wind turbines in the market, Senwei Energy has developed a series of small wind turbines made of lightweight aluminum alloy material with sufficient power. This type of wind turbine has a power of 200w/300w/500w street light type wind turbine, as well as 750w/1KW/1.5kW/2kW household wind turbines (off grid charging type, household grid connected type).
--The blades, motors, and their rotating bodies are all made of aluminum alloy material, which is very lightweight and easy to install, High strength, anti-aging, maintenance free;
--The generator adopts a permanent magnet direct drive synchronous generator, and the aluminum alloy casing has better heat dissipation effect;
--High quality alloy steel motor shaft, after quenching and tempering heat treatment, has strong toughness and high hardness;
--The stator piece is made of cold rolled 470 material, with low loss;
--Pure copper coil, high efficiency, long service life, various voltage supports customization;
--The rotating body and vertical shaft are connected by double bearings, making the entire fan flexible in rotation and freely facing the wind;
--The transmission adopts a collector ring, so there is no need to worry about cable entanglement;
--The tail wing adopts a rotatable design, which can ensure that the wind wheel is facing the wind direction under wind conditions below the rated wind speed, absorbing wind energy to the maximum efficiency, and can also use the wind pressure to make the wind wheel deviate from the wind direction above the rated wind speed. The higher the wind speed, the greater the deviation angle, and the maximum deviation angle can reach 90 degrees, effectively protecting the entire wind turbine system automatically;

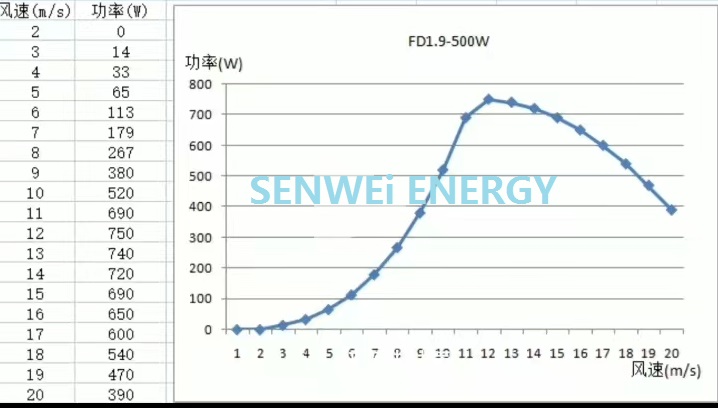

--The power curve table of individual wind turbines is as follows:
--You can choose between 5 or 3 blades, and freely choose the number of blades according to different wind conditions;

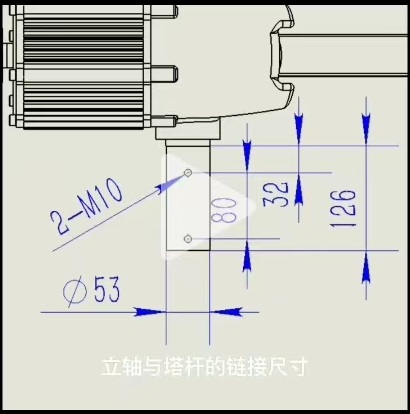

--Connection size between vertical axis and tower pole；
