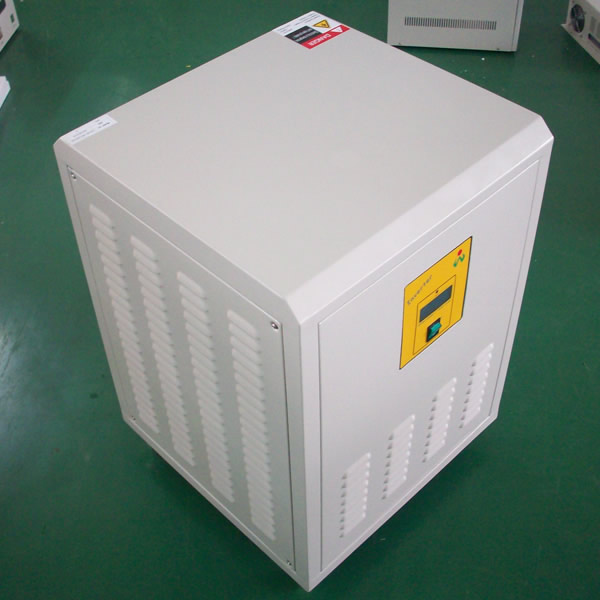

The standalone pure sine wave inverter is designed for inverting direct current of storage battery into rated output voltage for home appliances’ use( such as TV, Computer, Light, Vaccum cleaner and so on) With excellent appearance、clear LCD display、simple operation.
It has perfect protection function,suce as low battery protection, over load protection, short circuit protection, over temperature protection, reverse connect protection etc . It adopts the American origin Microcontroller as a control core component, and power parts of an apparatus adopt the import component, too. It is reliable, safe, high efficient, long service life.
TECHNICAL SPECIFICATIONS：
|
Model |
WI10-24 |
WI10-48 |
|
Rated Output Capacity |
1kVA | |
|
Rated Battery Voltage |
24 VDC |
48 VDC |
|
Over Voltage Point |
34VDC |
68VDC |
|
Over Voltag Recovery Point |
33VDC |
66VDC |
|
Under Voltage Point |
21VDC |
42VDC |
|
Under Voltag Recovery Point |
24VDC |
48VDC |
|
No Load Loss |
0.7A |
0.3 A |
|
Output Waveform |
Pure Sine Wave | |
|
Display Mode |
LCD | |
|
Display Parameter |
Battery Voltage, Output Voltage, State Parameter | |
|
Cooling Method |
Fan | |
|
Rated Output Voltage |
110/120/220/230/240 VAC | |
|
Total Harmonic Distortion |
≤4％ | |
|
Output Frequency |
50/60 Hz±0.05Hz | |
|
Dynamic Response |
5% | |
|
Overload Ability |
120% one minute,150% 10 seconds | |
|
Inverting Efficiency |
Max. 90% | |
|
Noise（1m） |
≤40dB | |
|
Dielectric Strength |
1500VAC, one minute | |
|
Protection Type |
Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection | |
|
Operation Ambient Temperature |
-20～50℃ | |
|
Operation Altitude |
≤4000m | |
|
Operation Ambient Humidity |
0~90%,no condensing | |
|
Size(W×H×D)mm |
470×280×240 | |
|
Weight（KG） |
12 | |
|
We can adjust the configurations and parameters according to customers’ requirement. | ||
|
Model |
WI20-48 |
WI20-96 |
WI20-120 |
WI20-220 |
WI20-240 |
|
Rated Output Capacity |
2kVA | ||||
|
Rated Battery Voltage |
48VDC |
96VDC |
120VDC |
216VDC |
240VDC |
|
Over Voltage Point |
68VDC |
134VDC |
170VDC |
306VDC |
340VDC |
|
Over Voltag Recovery Point |
66VDC |
132VDC |
160VDC |
297VDC |
320VDC |
|
Under Voltage Point |
42VDC |
84VDC |
105VDC |
189VDC |
210VDC |
|
Under Voltag Recovery Point |
48VDC |
96VDC |
120VDC |
216VDC |
240VDC |
|
No Load Loss |
0.4A |
0.2A |
0.15A |
0.1A |
0.1A |
|
Output Waveform |
Pure Sine Wave | ||||
|
Display Method |
LCD | ||||
|
Display Parameter |
Battery Voltage, Output Voltage, State Parameter | ||||
|
Cooling Method |
Fan | ||||
|
Rated Output Voltage |
110/120/220/230/240 VAC | ||||
|
Total Harmonic Distortion |
≤4％ | ||||
|
Output Frequency |
50/60 Hz±0.05Hz | ||||
|
Dynamic Response |
5% | ||||
|
Overload Ability |
120% one minute,150% 10 seconds | ||||
|
Inverting Efficiency |
Max. 90% | ||||
|
Noise（1m） |
≤40dB | ||||
|
Dielectric Strength |
1500VAC, one minute | ||||
|
Protection Type |
Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection | ||||
|
Operation Ambient Temperature |
-20～50℃ | ||||
|
Operation Altitude |
≤4000m | ||||
|
Operation Ambient Humidity |
0~90%,no condensing | ||||
|
Size(W×H×D)mm |
470×430×300 | ||||
|
Weight（KG） |
19.5 | ||||
|
We can adjust the configurations and parameters according to customers’ requirement. | |||||
|
Model |
WI30-48 |
WI30-96 |
WI30-120 |
WI30-220 |
WI30-240 |
|
Rated Output Capacity |
3kVA | ||||
|
Rated Battery Voltage |
48VDC |
96VDC |
120VDC |
216VDC |
240VDC |
|
Over Voltage Point |
68VDC |
134VDC |
170VDC |
306VDC |
340VDC |
|
Over Voltag Recovery Point |
66VDC |
132VDC |
160VDC |
297VDC |
320VDC |
|
Under Voltage Point |
42VDC |
84VDC |
105VDC |
189VDC |
210VDC |
|
Under Voltag Recovery Point |
48VDC |
96VDC |
120VDC |
216VDC |
240VDC |
|
No Load Loss |
0.46A |
0.3A |
0.17A |
0.12A |
0.12A |
|
Output Waveform |
Pure Sine Wave | ||||
|
Display Method |
LCD | ||||
|
Display Parameter |
Battery Voltage, Output Voltage, State Parameter | ||||
|
Cooling Method |
Fan | ||||
|
Rated Output Voltage |
110/120/220/230/240 VAC | ||||
|
Total Harmonic Distortion |
≤4％ | ||||
|
Output Frequency |
50/60 Hz±0.05Hz | ||||
|
Dynamic Response |
5% | ||||
|
Overload Ability |
120% one minute,150% 10 seconds | ||||
|
Inverting Efficiency |
Max. 90% | ||||
|
Noise（1m） |
≤40dB | ||||
|
Dielectric Strength |
1500VAC, one minute | ||||
|
Protection Type |
Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection | ||||
|
Operation Ambient Temperature |
-20～50℃ | ||||
|
Operation Altitude |
≤4000m | ||||
|
Operation Ambient Humidity |
0~90%,no condensing | ||||
|
Size(W×H×D)mm |
470×430×300 | ||||
|
Weight（KG） |
24.5 | ||||
|
We can adjust the configurations and parameters according to customers’ requirement. | |||||
|
Model |
WI50-96 |
WI50-120 |
WI50-220 |
WI50-240 |
|
Rated Output Capacity |
5kVA | |||
|
Rated Battery Voltage |
96VDC |
120VDC |
216VDC |
240VDC |
|
Over Voltage Point |
134VDC |
170VDC |
306VDC |
340VDC |
|
Over Voltag Recovery Point |
132VDC |
160VDC |
297VDC |
320VDC |
|
Under Voltage Point |
84VDC |
105VDC |
189VDC |
210VDC |
|
Under Voltag Recovery Point |
96VDC |
120VDC |
216VDC |
240VDC |
|
No Load Loss |
0.4A |
0.3A |
0.12A |
0.1A |
|
Output Waveform |
Pure Sine Wave | |||
|
Display Method |
LCD | |||
|
Display Parameter |
Battery Voltage, Output Voltage, State Parameter | |||
|
Cooling Method |
Fan | |||
|
Rated Output Voltage |
110/120/220/230/240 VAC | |||
|
Total Harmonic Distortion |
≤4％ | |||
|
Output Frequency |
50/60 Hz±0.05Hz | |||
|
Dynamic Response |
5% | |||
|
Overload Ability |
120% one minute,150% 10 seconds | |||
|
Inverting Efficiency |
Max. 90% | |||
|
Noise（1m） |
≤40dB | |||
|
Dielectric Strength |
1500VAC, one minute | |||
|
Protection Type |
Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection | |||
|
Operation Ambient Temperature |
-20～50℃ | |||
|
Operation Altitude |
≤4000m | |||
|
Operation Ambient Humidity |
0~90%,no condensing | |||
|
Size(W×H×D)mm |
670×420×670 | |||
|
Weight（KG） |
60 | |||
|
We can adjust the configurations and parameters according to customers’ requirement. | ||||
|
Model |
WI100-120 |
WI100-220 |
WI100-240 |
WI100-360 |
|
Rated Output Capacity |
10kVA | |||
|
Rated Battery Voltage |
120VDC |
216VDC |
240VDC |
360VDC |
|
Over Voltage Point |
170VDC |
306VDC |
340VDC |
510VDC |
|
Over Voltag Recovery Point |
160VDC |
297VDC |
320VDC |
495VDC |
|
Under Voltage Point |
105VDC |
189VDC |
210VDC |
315VDC |
|
Under Voltag Recovery Point |
120VDC |
216VDC |
240VDC |
360VDC |
|
No Load Loss |
0.3A |
0.4A |
0.4A |
0.25A |
|
Output Waveform |
Pure Sine Wave | |||
|
Display Method |
LCD | |||
|
Display Parameter |
Battery Voltage, Output Voltage, State Parameter | |||
|
Cooling Method |
Fan | |||
|
Rated Output Voltage |
110/120/220/230/240 VAC | |||
|
Total Harmonic Distortion |
≤4％ | |||
|
Output Frequency |
50/60 Hz±0.05Hz | |||
|
Dynamic Response |
5% | |||
|
Overload Ability |
120% one minute,150% 10 seconds | |||
|
Inverting Efficiency |
Max. 90% | |||
|
Noise（1m） |
≤40dB | |||
|
Dielectric Strength |
1500VAC, one minute | |||
|
Protection Type |
Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection | |||
|
Operation Ambient Temperature |
-20～50℃ | |||
|
Operation Altitude |
≤4000m | |||
|
Operation Ambient Humidity |
0~90%,no condensing | |||
|
Size(W×H×D)mm |
600×890×600 | |||
|
Weight（KG） |
93 | |||
|
We can adjust the configurations and parameters according to customers’ requirement. | ||||
|
Model |
WI200-220 |
WI200-240 |
WI200-360 |
|
Rated Output Capacity |
20kVA | ||
|
Rated Battery Voltage |
216VDC |
240VDC |
360VDC |
|
Over Voltage Point |
306VDC |
340VDC |
510VDC |
|
Over Voltag Recovery Point |
297VDC |
320VDC |
495VDC |
|
Under Voltage Point |
189VDC |
210VDC |
315VDC |
|
Under Voltag Recovery Point |
216VDC |
240VDC |
360VDC |
|
No Load Loss |
0.5A |
0.5A |
0.8A |
|
Output Waveform |
Pure Sine Wave | ||
|
Display Method |
LCD | ||
|
Display Parameter |
Battery Voltage, Output Voltage, State Parameter | ||
|
Cooling Method |
Fan | ||
|
Rated Output Voltage |
110/120/220/230/240 VAC | ||
|
Total Harmonic Distortion |
≤4％ | ||
|
Output Frequency |
50/60 Hz±0.05Hz | ||
|
Dynamic Response |
5% | ||
|
Overload Ability |
120% one minute,150% 10 seconds | ||
|
Inverting Efficiency |
Max. 90% | ||
|
Noise（1m） |
≤40dB | ||
|
Dielectric Strength |
1500VAC, one minute | ||
|
Protection Type |
Battery over voltage protection、Battery under voltage protection、Battery reverse-connect protection、Output over load protection、Output short circuit protection、Over temperature protection | ||
|
Operation Ambient Temperature |
-20～50℃ | ||
|
Operation Altitude |
≤4000m | ||
|
Operation Ambient Humidity |
0~90%,no condensing | ||
|
Size(W×H×D)mm |
|||
|
Weight（KG） |
|||
|
We can adjust the configurations and parameters according to customers’ requirement. | |||
We reserve the right to update the products without notice
