Permanent Magnet Generator

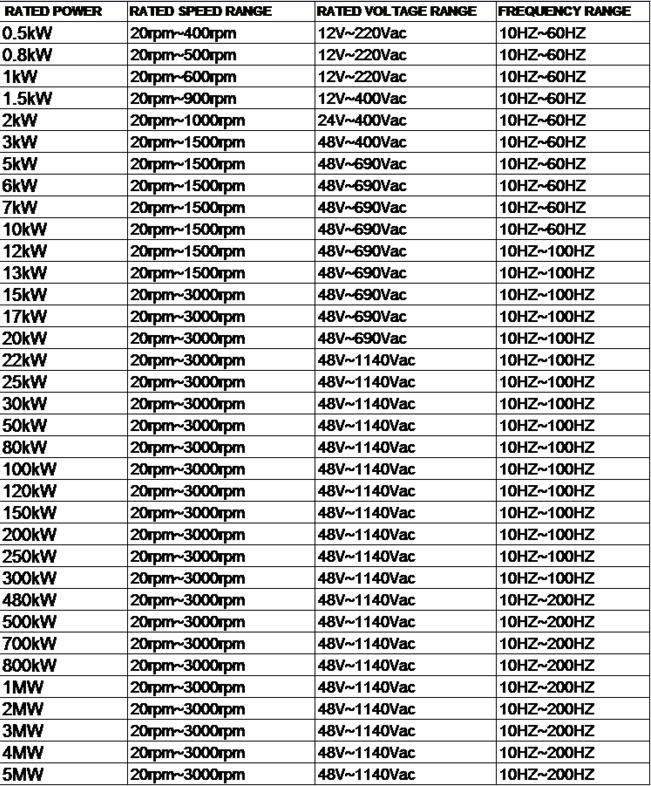

Main Parameter:

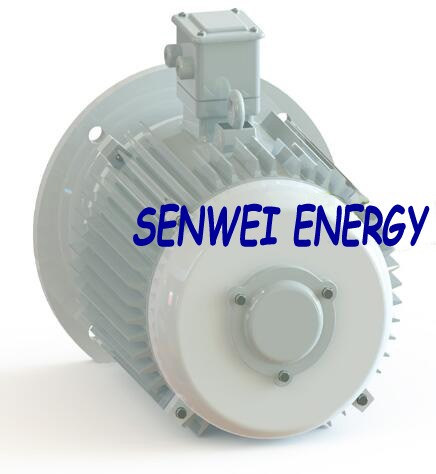

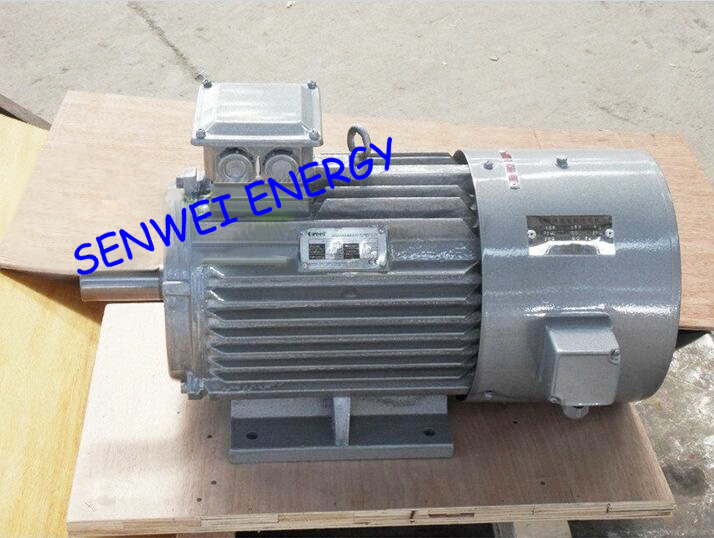

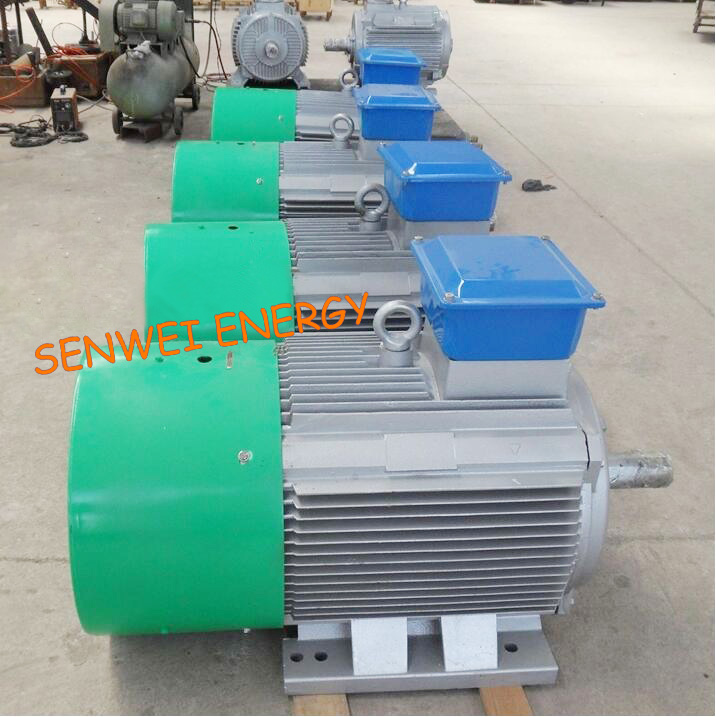

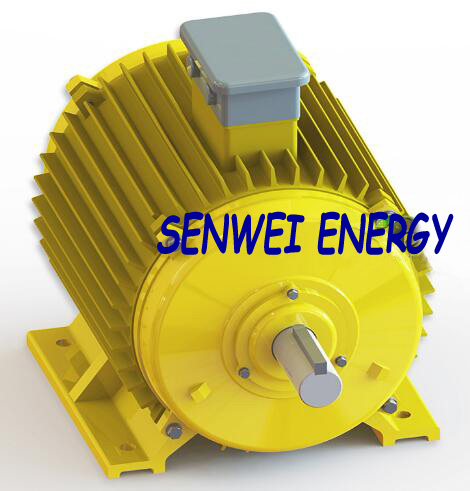

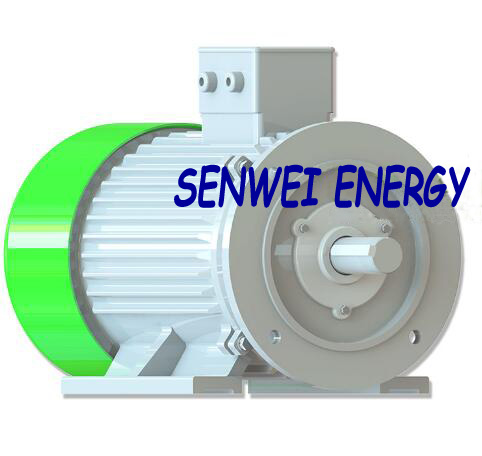

Permanent Magnet Alternator Generator

Product Description



SENWEI energy company supply variety of permaent magent generators which is suitable for driven by following equipment to

. Driven by Wind Power --------Wind turbine

. Driven by Water Power ------- Hydro generator

. Driven by Belt with  Motors

. Driven by Motor

. Dirven by  perpetual motion machine

. Dirven by test plant

. Dirven by yourselves  creation

. Driven the permanent magnet generator and make it rotate then it can generate power





Advantage



1. Rare earth Nd-Fe-B permanent magnet generator. energy save energy more than 15% than ordinary generators.

2. Permanent magnet rotor structure, no excitation winding, no carbon brushes, no slip rings, no need gear box. Simple structure, reliable ,durable and Maintenance free.

3. Multi poles design, improve the frequency and efficiency of rectifiers and inverters. Saving cost .

4. Started directly, without control cabinet, replace the asynchronous motor totally.

5. H class insulation, vacuum pressure impregnation.

6. Use SKF bearings

7. Power factor close to 1,no need add power factor compensation equipment.

8. Small heat, aslo can add fan cooling or water cooling

9. Long life time >20years, Strong rotors, could run at high speed.24hours 365days running.

10. Energy-saving, return investment within 1-2years.



NOTICE:For Exactly Price please send your inquiry with your details request . POWER, SPEED, VOLTAGE etc.



Technical Data



Generator type : Pemanent Magnet  Synchronous   Direct drive   3Phase  AC



Customized     Voltage, Speed, Power ,Frequency.

Customized shaft size ,Spline shaft, biaxial extension, flange can be used.

Varity structures design : vertical axis, horizontal axis, internal rotor, external rotor, plate type.

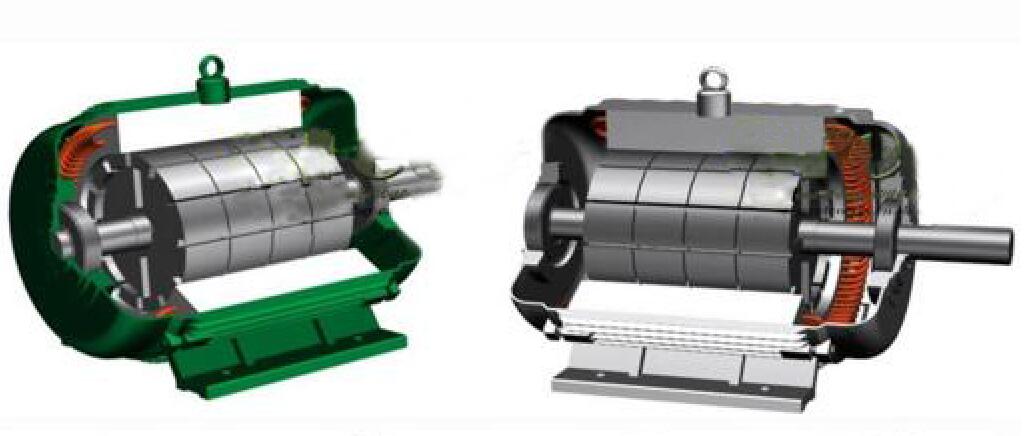

Drawing Sample

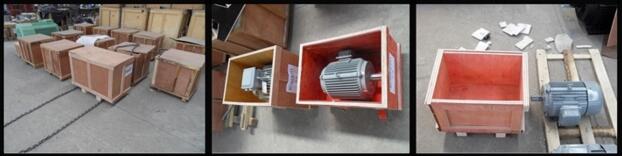

Packaging & Shipping



1. Alternator for wind generator use inner foam protection outer Plywooden case .

2.Pakage size and weight please refer to our sales.

3.Shipping  by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.
